Optical Products / Blu-ray Duplicators

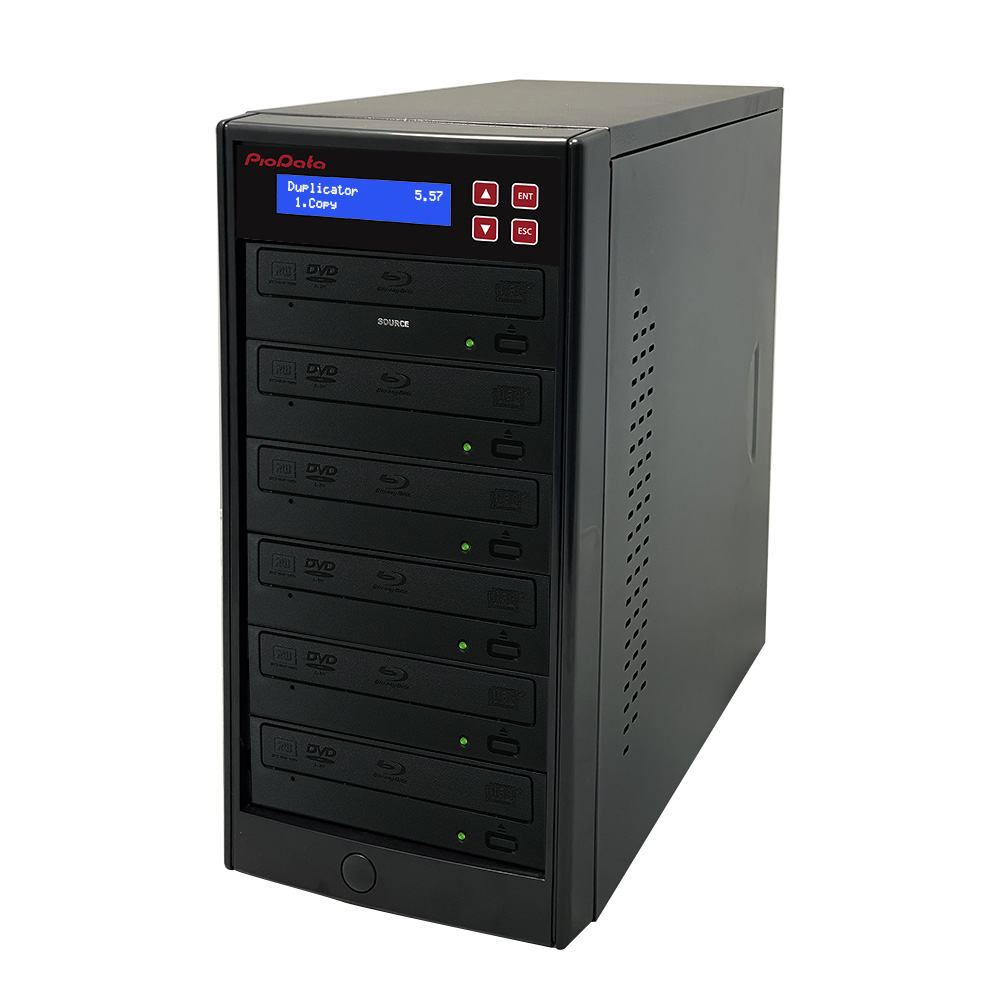

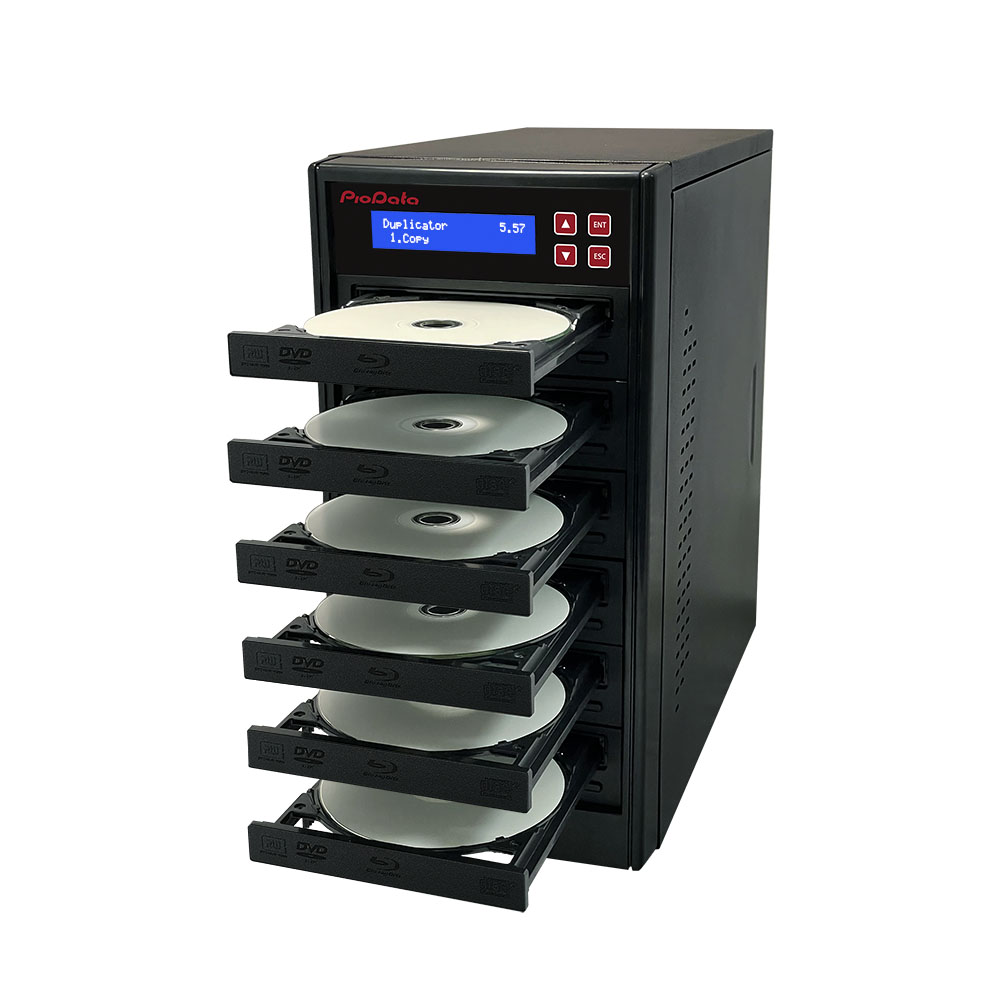

1 to 5 Blu-ray Duplicator

MPN: PIO-S5T-BD-BK

The PioData Blu-ray CD DVD Copier is a standalone SATA BD CD DVD duplicator. The PioData series uses the top-quality Pioneer Blu-ray drives for superior quality and reliability. PioData is a popular series in Japan and now available globally. The easy to operate control panel and intuitive features make the system perfect for nearly anyone. These units are truly strong performing systems at a more affordable price point to meet the users growing demands without exceeding their budget. The PioData duplicators provide top quality and reliability. Whether you are buying a duplicator for the first time or you are an experienced user, the PioData series of duplicators will grow with your needs and experience.

Key Features:

  1. Complete Standalone Operation:
    No PC required to operate the duplicator.
  2. Able to copy Blu-Ray discs:
    Able to duplicate Blu-Ray discs as well as DVD and CD discs.
  3. Supports all currently available Blu-ray & DVD media including Double/Dual layer:
    Can duplicate Single Layer DVD±R/RW/Blu-ray and Double/Dual Layer DVD±R/Blu-ray Formats.
  4. Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  5. Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  6. Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  7. Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.

Additional Features:

  1. New Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  2. AutoCopy feature:
    Fast duplication without pressing any buttons.
  3. Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  4. Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  5. User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  6. Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  7. Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  8. Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  9. Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  10. Supports all currently available DVD media including Double/Dual layer DVD9:
    Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
  11. Supports both Disk-at-Once and Track-at-Once modes
  12. Automatic format recognition:
    Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
  13. Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  14. Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  15. Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.



Model Blu-Ray/DVD/CD Tower Duplicator
Operating Type Stand-alone
Internal Interface SATA
Target 1 - 11
BD Reader OEM Blu-ray Reader Drive
Language Support English, Spanish, French, German, Italian, Japanese, and more (Chinese can be ordered on request)
Display 20 x 2 Blue LCD
Featuring Reader 12x SATA Blu-ray/DVD/CD Writer
Maximum Write Speed BD-R:12x
BD-R DL:12x
DVD-R:16x
DVD+R:16x
DVD-R DL: 8x
CD-R:40x 		BD-RE: 2x
BD-RE DL: 2x
DVD-RW: 6x
DVD+RW: 8x
DVD+R DL: 8x
CD-RW: 24x
Formats Supported BD-ROM, BD-R, BD-RE,
BD-R Double Layer, BD-RE Double Layer
DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Bridge
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R
Firmware Upgradeable Yes
Burn Proof Support Yes
Power Supply Input : 90 ~ 240 V, Up to 500 WATT max
Operating Humidity 20% ~ 80%
Temperature Extremes 40°C (104°F) / 5°C (41°F)
Regulations FCC, CE, RoHS
Manufacture Vinpower Digital



Important Notice

  • The duplicator will not copy any copy-protected or encrypted disc(s).
  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Throughput Capacity Per Hour:

Target 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
 350 MB CD
 *at 40x duplication speed		 24 48 72 96 120 144 168 192 216 240 264 288 312 336 360
 2.5 GB DVD
 *at 16x duplication speed 		12 24 36 48 60 72 84 96 108 120 132 144 156 168 180
 12.5 GB Blu-ray
 *at 6x duplication speed 		5 10 15 20 25 30 35 40 45 50 55 60 65 70 75

PIODATA has developed the first true standalone duplicator which can offer embedded copy protection. The unique Copy Protection Software (CPS) can embed a proprietary copy protection encryption into any DVD video master through a PC which can then be transferred onto the Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since CPS is software based as apposed to hardware based, there are no issues with compatibility with players like similar models on the market. In addition, CPS protects against both duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

In today’s savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn’t be restricted in the number of units you can sell because you can’t afford the high price of replicated copy protection. Instead by using Vinpower Digital’s CPS, you can feel secure at a fraction of the expense and time with no minimum or maximum quantities required.

How the FREE OCP Copy Protection Works:

1. Load the supplied CPS software onto a suitable PC.
2. Plug in the CPS USB dongle with activated licenses into your PC’s USB socket.
3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
4. Transfer the new copy protected master content from the PC onto an enabled duplicator via USB/Copy Connect or LAN/Network connectivity
5. Load blank DVD recordable discs into the duplicator’s writer drive(s) then locate the transferred file through the duplicator’s menu keys from the internal hard drive
6. Initiate the copy process and when the finished discs all successfully copy, these discs will have the copy protection already embedded.

System Requirements:

Operating Systems Windows® 7 (32 Bit, 64 Bit),  Windows Vista® (32 Bit, 64 Bit),  Windows XP (32 Bit, 64 Bit)
Minimum System Requirement for PC CPU: Pentium 4, 2.4GHz; RAM: 512MB; 1 x Hi-Speed USB 2.0 Port
Administrator User Privilege for above Operation Systems
